Residential Solar Power Plant

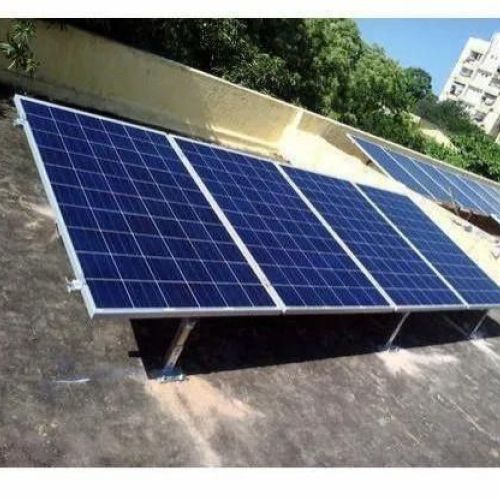

3KW Home Solar Power Plant Installed at NIT Trichy with Emerson EEU

Features:

• We have the capability to offer Solar Power Projects on a turnkey basis comprising supply, Installation & Commissioning anywhere in India


• We provide our clients (Companies, Promoters, Builders) Solar Power Plant -complete package (Standalone/Dual) up to 30KW t with expertise backed


• We take care of the Operation & Maintenance of the solar plants post commissioning


• Our Solar PV modules are as per MNRE/IES standards, guaranteed life for minimum 20 years for 100% efficiency


• The Batteries are of EXIDE Tubular, specially made for Solar Application with longer life & carries more warranty than conventional


• The electronics for Inversion from DC to AC are guaranteed for 2 years tailor made as per international specification


• We assist our clients to get bank loan & Govt. Subsidy @ Rs 81 per watt to get their ROI quickly plus clients can avail IT benefits for 5 years

Technical Specifications:

• Solar Inverter (Dual System -Grid & Solar with MPPT) - Three Phase Input & output


• System capacity Range :8KW (10 KVA) to 30KW (40 KVA) & System Voltage :upto 360V


• Plant Output details:415 AC Three Phase, 50Hz ( /- 3Hz) Peak efficiency:95% on normal sunny days


• Solar Array Spec.:Input 100V DC to 440V DC and MPPT (Charge controller) Voltage 110 - 396V Solar PV panels are as per MNRE spec.


• Solar Tubular Battery: 120V DC to 360V DC Voltage , Current - 74A to 185 A We use normally Exide Monoblock deep cycle Solar Tubular Battery


• Grid tracking voltage:414 V Three phase, ( /-10%) , 50Hz ( /-3 Hz)


• Environmental:Operating.Temp - 0 to 40Deg C, Humidity-95%RH (Non-Condensing), Noise-
