Product Details
Features
100% Copper, BLDC Technology,Stabiliser Free Operation
Product Type
Split AC
Series Name
Ready Go Series
Power Source
Solar Power
Run from direct 6nos X335w solar panels independently also with 230v AC supply from EB main grid (or ) from AC supply from off grid solar plant with battery back up. [Recommended 3 Kw/48v Solar offgrid plant with safety accessories] Run direct from solar panels (
or) from 230v AC mains- -both connections can be given together to indoor unit throgh changeover switch.
Note :Dc supply from solar panel & AC main supply both shall be connected to 3 step manual Changeover switch that will feed Airconditioner. U can select DC current from solar panel (or) AC supply from grid using this switch.

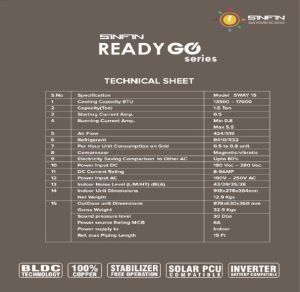

Technical Specifications
| Specification Model | Model Sway 15 |
| Cooling Capacity BTU | 13500-17000 |
| Capacity (Ton) | 1.5 Ton |
| Starting Current Amp. | 0.5 |
| Running Current Amp. | Min 0.8 |
| Max 5.5 | |
| Air Flow | 424/519 |
| Refrigerant | R410/R32 |
| Per Hour Unit Consumption | 0.5 / 0.8 Unit |
| Compressor Magnetic/Vibratic | Magnetic/Vibratic |
| Electricity Saving Comparison to other AC | Upto 80% |
| Power Input DC | 180V-250V |
| DC Current Rating | 8-9 Amp. |
| Power Input AC | 190V-250V AC |
| Indoor Noise Level (L/M/HT) dB (A) | 43/29/35/28 |
| Indoor Unit Dimensions | 878x630x360 mm |
| Net Weight | 32.9 kgs |
| Outdoor Unit Dimentions | 878x630x360 mm |
| Gross Weight | 32.9 kgs |
| Sound Pressure Level | 30 Dba |
| Power Source Rating MCB | 6A |
| Opower Supply to Ref. Max Piping Length | Indoor |
| 15 Ft. |
